| General | |
| Input Voltage | 110/220 VAC or 18 to 30 Vdc |
| Input Current | 1A(Max) at 110VAC 0.5A(Max) at 220VAC 5A(Max) at 20Vdc to 30Vdc |
| Reverse Polarity Protection | Fully protected on DC input and battery outputs |
| Bulk charging rate | 1.1A (C/5) |
| Bulk to overcharge transition Voltage | 14.8V Vdc |
| Overcharge Terminate Current | 110mA(c/50) |
| Float Charge Voltage | 13.7 Vdc |
| Float to bulk transition voltage | 12.0 Vdc |
| Temperature coefficient on voltage levels | -12mV/℃ |
| Current drain on battery | 5 μA Max (with power off) |
| Nominal charge time | 6hours(with 80% discharged battery) |
| Mechanical | |
| Panel indicators | POWER ON and FAULT CHARGE, READY |
| Operating controls | POWER ON/ AC ON/ DC switch |
| Dimensions | 259*103*163(W*H*D)MM |
| Temperature operating | 0℃ to +60℃ (ambient) |

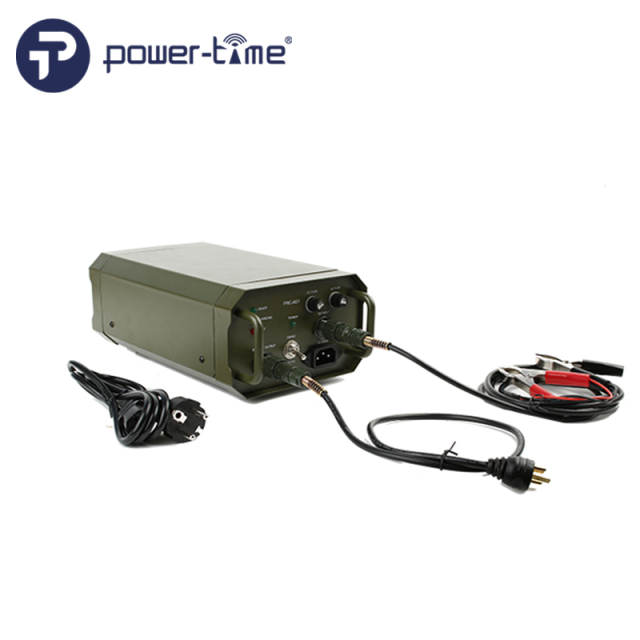

The Power-Time PTC-LA6 is a professional quick charger for BB-LA6 lead-acid batteries, engineered to provide controlled and reliable battery charging. Its three-stage charging circuit is managed by a digital processor to deliver the appropriate charging current and voltage throughout the charging cycle.
During the bulk charging stage, the battery is charged at a high rate until it reaches the preset terminal voltage. The charger then gradually reduces the charging current while maintaining the specified terminal voltage. Once the charging current falls to approximately one-tenth of the bulk charging rate, the charger transitions to the next stage to help prevent overcharging and support longer battery service life.
The PTC-LA6 also incorporates automatic capacity detection. When the connected BB-LA6 battery reaches a saturated state, the charger stops the charging process and changes the indicator to green READY status.
An automatic temperature detection function provides additional charging control. When the battery temperature is too low, the charger reduces the charging current to a micro-current level until the battery temperature returns to the normal operating range. The charger then automatically resumes normal-current charging.
With its wide-range AC/DC input, reverse-polarity protection, intelligent charging control, and rugged professional design, the PTC-LA6 provides a practical charging solution for BB-LA6 battery systems used in demanding operational environments.
The Power-Time PTC-LA6 is designed for charging BB-LA6 lead-acid batteries and is suitable for:
| Item | Specification |
|---|---|
| Product Type | Quick Charger for BB-LA6 Lead-Acid Battery |
| Model No. | PTC-LA6 |
| Compatible Battery | BB-LA6 Lead-Acid Battery |
| Input Voltage | 110/220 VAC or 18–30 VDC |
| Input Current | 1A Max. at 110 VAC; 0.5A Max. at 220 VAC; 5A Max. at 20–30 VDC |
| Charging System | Three-stage digital processor-controlled charging |
| Bulk Charging Rate | 1.1A (C/5) |
| Bulk-to-Overcharge Transition Voltage | 14.8 VDC |
| Overcharge Termination Current | 110mA (C/50) |
| Float Charge Voltage | 13.7 VDC |
| Float-to-Bulk Transition Voltage | 12.0 VDC |
| Temperature Coefficient | -12 mV/°C |
| Battery Current Drain | 5 μA Max. with power off |
| Nominal Charging Time | 6 hours with 80% discharged battery |
| Reverse Polarity Protection | Fully protected on DC input and battery outputs |
| Panel Indicators | POWER ON, FAULT/CHARGE, READY |
| Operating Controls | POWER ON / AC ON / DC Switch |
| Dimensions (W × H × D) | 259 × 103 × 163 mm |
| Operating Temperature | 0°C to +60°C ambient |
This charger is designed for professional users demanding precise energy management for lead-acid batteries like BB-LA6. It suits defense contractors, communication equipment manufacturers, and military logistics units requiring consistent, reliable charging performance. The unit ensures compatibility with existing military battery charger infrastructures by providing safe, efficient recharge cycles that maximize battery lifespan and operational readiness in tactical environments leveraging battery types such as the 14.4 battery and ALI243 battery.
Equipped with a microprocessor-based three-stage charging system, it regulates bulk, absorption, and float charge levels rigorously. The charger operates within an input voltage range of 110/220 VAC or 18–30 VDC and features automatic capacity detection and temperature-sensitive micro-current adjustments. Reverse polarity protection and clear indicator LEDs support fault prevention and diagnostics. Technical specifications highlight a 1.1A bulk charge with current tapering to a 110mA float current, ensuring efficient and safe recharge cycles that preserve battery health in demanding military battery charger applications.
The charger applies effectively across military and security operations using equipment dependent on batteries such as the TRC-3700 battery and Thales PR4G battery. It supports rapid battery turnaround in field deployed systems, communication hubs, and stationary power stations, maintaining critical equipment operability. The system’s rugged design meets operational requirements for military-grade power management, facilitating integration within broader supply chains and field maintenance workflows essential to frontline and defense technology infrastructure.
The device’s architecture includes modular integration capabilities, adapting seamlessly into existing military battery charger systems, with special consideration for battery types like ALI143 battery and the 14.4 battery. Enhanced reverse polarity protection safeguards both the charger and batteries against incorrect connections, while the temperature-sensing micro-current charging mechanism prevents degradation under adverse environmental conditions. Compact dimensions and durable construction support deployment in mobile and stationary setups, underscoring the engineering focus on reliability and service continuity for mission-critical applications.
Performance features such as intelligent three-stage charging ensure efficient energy delivery without overcharging, preserving battery capacity and extending operational life of batteries like those in military battery configurations. User interface simplicity with clear status indicators reduces operator error and supports maintenance protocols in field conditions. The wide input voltage flexibility facilitates use across varied power grids, reinforcing its utility in logistical and tactical deployments demanding precise, reliable LITHIUM BATTERY CHARGER alternatives or lead-acid battery solutions.
In high-demand military communication setups, the charger supports quick recharge cycles for BB-LA6 and other specialized batteries, ensuring uninterrupted power supply for radios and tracking devices critical to operations. Its temperature-controlled charging and protective circuitry prevent damage, complying with defense standards for battery management. Embedded within field stations, the charger streamlines power workflows by interfacing with portable and fixed equipment, thereby enhancing operational readiness and supply chain efficiency in unpredictable environments heavily reliant on military battery charger technology.
Within controlled maintenance environments, this charger serves as a dependable unit for reconditioning and testing of critical batteries such as Thales PR4G battery and the TRC-3700 battery. It facilitates systematic battery replenishment cycles aligned with procurement and lifecycle management strategies, mitigating downtime risks in security technology deployments. The device’s precise charging algorithm and protection systems ensure compliance with rigorous military specifications, allowing integration with broader logistics management systems to uphold equipment functionality and mission success.
FAQ
What types of batteries are compatible with the PTC-LA6 charger?
Our PTC-LA6 charger is specifically designed for the BB-LA6 lead-acid battery model. It ensures optimized charging performance and battery longevity exclusively for this battery type, making it suitable for professional equipment that relies on military battery standards.
Can the PTC-LA6 charger be customized for different voltage inputs?
We offer the PTC-LA6 charger with a wide input voltage range supporting both 110/220 VAC and 18–30 VDC. While this model is fixed for these inputs, our manufacturing capabilities allow us to discuss custom solutions tailored to specific operational requirements.
How do you ensure the safety and longevity of batteries during charging?
Our charger uses an intelligent three-stage digital processor that manages current tapering and temperature-sensitive micro-current charging. This approach prevents overcharging and protects battery health even under extreme conditions typical in military battery charger applications.
What technical support is available for installation and maintenance?
We provide detailed product specifications and operational guidance for all our products. Our technical team is ready to assist you with installation support and troubleshooting to ensure reliable performance in demanding field environments.
