Clear crew communication inside armored vehicles depends on equipment that keeps working through constant noise and vibration, so sourcing through an experienced military helmet headset supplier matters from the very first order. The DH-132 CVC helmet headset is made in accordance with MIL-STD-810 and pairs full-spectrum noise reduction with a flexible boom microphone and a fire-retardant inner liner, and as the manufacturer we match the hard cover, liner, and communications kit to each mission profile.

View DH-132 CVC Headset Contact Us

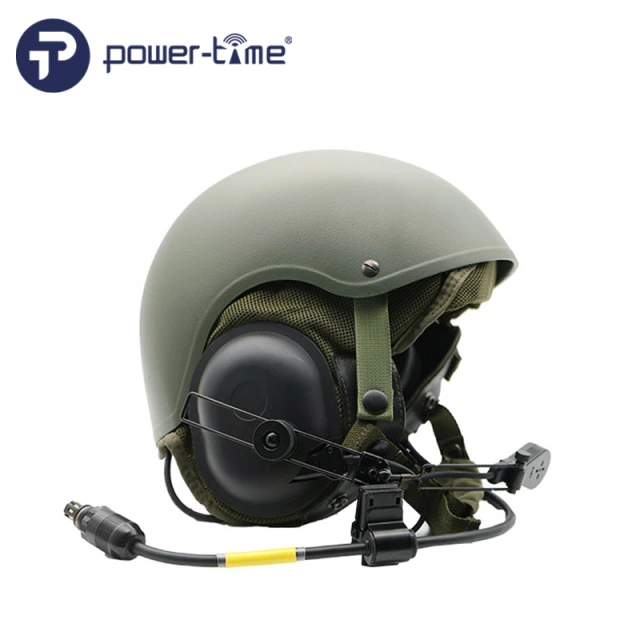

DH-132 CVC helmet headset with cordset and connector — DH-132 CVC helmet headset, supplied with an AP-107XL cordset plug

What the DH-132 CVC Helmet Headset Delivers

This combat vehicle crew headset is designed for personnel operating and manning military armored vehicles, where speech intelligibility and hearing protection have to hold up at the same time. The modular outer shell, the liner, and the communications system are engineered to work as one assembly.

Full-spectrum noise cancelling headset technology that minimizes ambient noise interference
Choice of a dynamic or noise canceling electret microphone on a flexible boom
Two earphones — one installed in each earcup — for stereo audio clarity
Integrated radio-intercom switch and an MK-1697/G communications kit, or other optional kits
Fire-retardant inner liner that attaches to both the outer helmet shell and the communications system
Ergonomic design that supports extended wear and helps reduce crew fatigue
Compatibility with existing military radio and intercom systems

Key Specifications

The values below are taken from the published product information. Confirm the exact configuration for your unit before ordering.

Item No.	PTE-747
Standard compliance	MIL-STD-810
Ballistic standard referenced	MIL Standard 662, 17 grain fragmentation simulation
Ballistic ratings listed	V50 1400 fps; V50 2150 fps
Microphone	Dynamic or noise canceling electret
Earphones	Two earphones, one installed in each earcup
Communications kit	MK-1697/G, or other optional kits
Middle connector	NEXUS connector AJ-107XL and AP-107XL
End connector	U-229/U 5 pin
Cordset plug	Lower AP-107XL plug

Hard Cover and Liner Options

Protection level and fit can be matched to the mission. Two shell sizes and two liner sizes cover the majority of crew members.

Hard Cover

Available in two sizes with a choice of colors, and with fiberglass or ballistic protection levels.

Sizes: Small; Medium/Large
Colors: Black, Green, Olive Drab, Desert Tan, Gray, Foliage Green
Protection: fiberglass (bump only); ballistic V50 1400 fps; ballistic V50 2150 fps
The outer cover itself is optional

Liner

Two liner sizes fit the 5th to 95th percentile, with a choice of foam construction for ventilation or humid conditions.

Sizes: Small; Medium/Large (fits 5th to 95th percentile)
Impact foam skived for ventilation
High-moisture and high-humidity resistant ventilated foam pads

Typical Applications

The headset is built around armored vehicle command and crew communication duties, including:

Military tanks and troop carriers
Stryker, LAV, and Avenger vehicles
Armored vehicle command positions and crew stations
High-noise interior environments where full-spectrum noise reduction is required

Ready to Equip Your Armored Vehicle Crews?

Share your configuration requirements and we will confirm availability, options, and delivery for the DH-132 CVC helmet headset.

Back to Product Page

Frequently Asked Questions

what is the dh-132 cvc helmet headset used for?

it is designed for personnel operating and manning military armored vehicles, including tanks, troop carriers, stryker, lav, and avenger vehicles, where armored vehicle command and crew communication must stay clear and dependable.

which standard does the dh-132 cvc helmet headset comply with?

the headset is made in accordance with mil-std-810. hard cover ballistic options reference mil standard 662 with 17 grain fragmentation simulation, listed at v50 1400 fps or v50 2150 fps.

what microphone and earphone options are available?

you can choose a dynamic or noise canceling electret microphone on a flexible boom. two earphones are installed, one in each earcup, and the integrated radio-intercom switch supports in-vehicle communication.

which sizes and colors are offered for the hard cover?

the hard cover comes in small and medium/large, with color choices of black, green, olive drab, desert tan, gray, and foliage green. protection can be fiberglass (bump only) or ballistic, and the outer cover is optional.

what connectors and communications kit are included?

the cordset uses a lower ap-107xl plug, with a nexus connector aj-107xl and ap-107xl as the middle connector and a u-229/u 5 pin end connector. an mk-1697/g communications kit is included, or another optional kit can be specified.

how do i request pricing or a quotation?

because each headset is configured to mission requirements, ordering is quote-based. contact us with your vehicle platform, required quantity, and preferred cover, liner, and communications options to receive a quotation.
