Power-Time Single Charger

Intelligent PTC-2590L 3A   Mid-Rate single charger for BB-2590, and BB-390 military battery packs, it provides a reliable and consistent recharge of one battery. It is an auto senses battery type that assures proper charge profile.

Advantages of the 2590 single charger:

--- Unattended Charging
* Smart charge modules that detect open or shorted cells. If a defective cell is detected it will not start the charge cycle

* No programming or special instruction set is needed to achieve safe and
Complete recharge of the battery
 --- Wide Range Input Voltage
* Allows operation from nearly any residential  AC power source that  you will likely encounter worldwide

--- Recharge Each String of Cells
* To ensure a proper recharge of the battery each string of cells in the battery is recharged independently

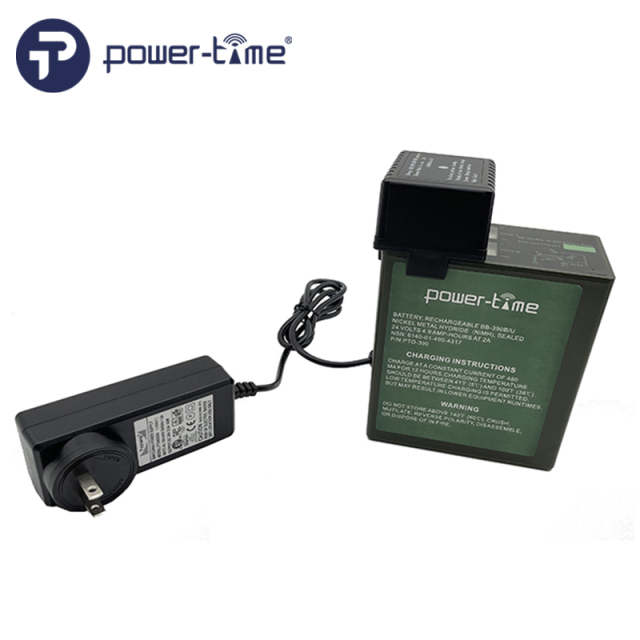

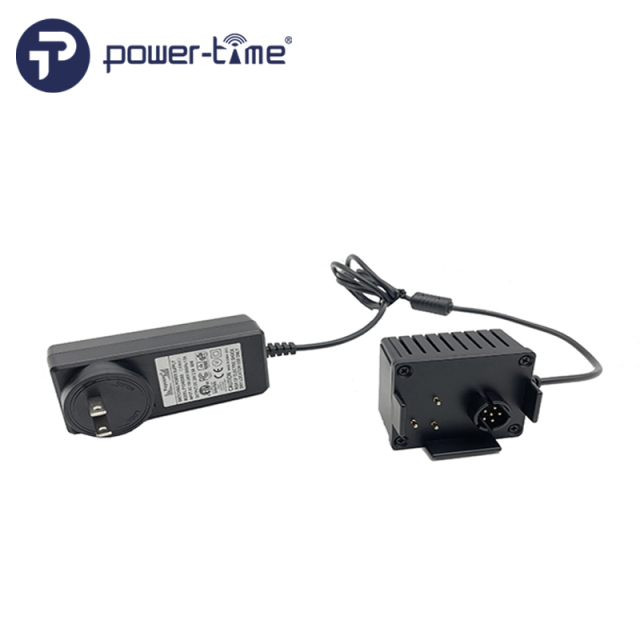

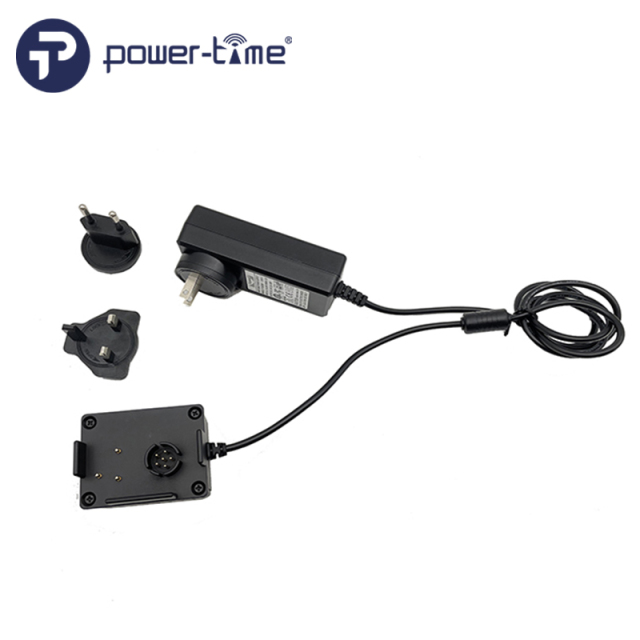

PTC-2590L Single-Channel Intelligent Charger for BB-2590 and BB-390 Batteries

The PTC-2590L is a professional-grade, mid-rate single-channel charger engineered for the high-performance requirements of BB-2590 (Li-ion) and BB-390 (Ni-MH) military battery packs

This intelligent charging solution provides a reliable, consistent recharge for one battery at a time, utilizing auto-sensing technology to automatically detect the battery chemistry and apply the correct charging profile without any manual programming

Key Features & Technical Specifications
The PTC-2590L is designed for "unattended charging," allowing users to plug in a battery and let the smart modules handle the rest safely

Intelligent Auto-Sensing: Automatically identifies the battery type (Li-ion or Ni-MH) to ensure the proper charge profile is applied for safety and efficiency

Independent String Charging: To ensure a thorough and balanced recharge, the PTC-2590L recharges each string of cells within the battery independently

Advanced Safety Modules: Built-in smart modules detect open or shorted cells; the unit will not initiate a charge cycle if a defective cell is found, preventing hazardous situations

Global Voltage Compatibility: Features a wide input voltage range (100-240V AC, 50-60Hz), allowing for reliable operation from residential power sources worldwide

Optimized Performance: Delivers a 3A charge rate for Li-ion and 2A for Ni-MH, with a maximum charge time of 6 hours

Lightweight & Portable: Weighing only 0.5kg (1lb), it is highly portable for field use.

LED Status Indicators
The PTC-2590L features a clear LED interface to track your battery's status:
Solid Orange: Standby mode

Flashing Green: Charging in progress

Solid Green: Charging complete

Solid Red: Fault detected

Product Applications

The rugged design and intelligence of the PTC-2590L make it the ideal choice for several mission-critical environments:
Defense & Tactical Operations: Specifically designed for the BB-2590 and BB-390 batteries used in military manpack radios and tactical electronics

Emergency Response & Disaster Relief: A dependable power source for teams using military-spec high-capacity batteries for long-range communications.
International Field Assignments: Its wide range AC input makes it perfect for personnel traveling between different countries with varying power standards

Unattended Maintenance: Ideal for maintenance hubs where staff need a "set and forget" charging solution that won't compromise battery health

Frequently Asked Questions (FAQs)
Q: Which batteries are compatible with the PTC-2590L? A: It is fully compatible with BB-2590 and PTO-2590 (Li-ion) batteries, as well as BB-390/U and PTO-390 (Ni-MH) military battery packs

Q: Do I need to program the charger for different battery types? A: No. The PTC-2590L features auto-sensing technology that automatically identifies the battery type and applies the correct charge profile without any special instructions

Q: Is the PTC-2590L safe to use with damaged batteries? A: The charger includes safety modules that detect open or shorted cells. If a defective cell is found, the charge cycle will not start

Q: How long does it take to fully charge a battery? A: The maximum charge time is 6 hours, depending on the battery’s capacity and current state

Q: Can this charger be used internationally? A: Yes. It supports a Wide Range Input Voltage (100-240V AC), making it compatible with nearly any residential power source encountered worldwide
