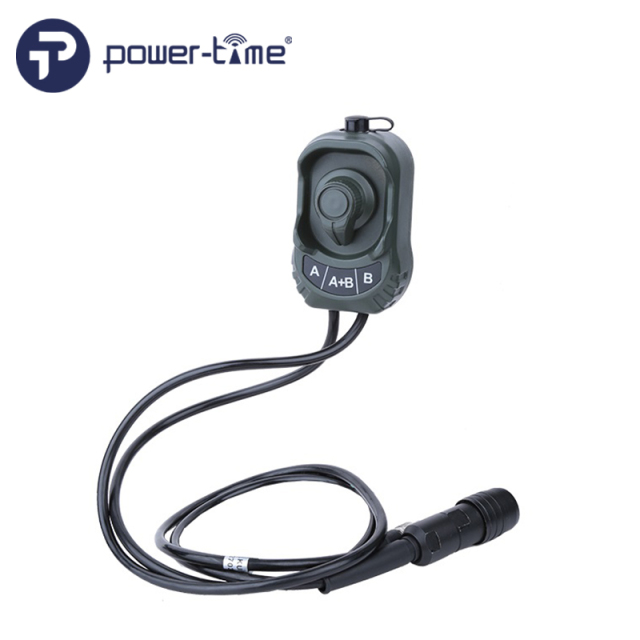

PT-5764 3-Position PTT Switch Box for Aselsan Radios

Introduction: High-Fidelity Tactical Switching for Aselsan Systems

The PT-5764 PTT Box is a specialized, military-grade communication interface purpose-built for Aselsan two-way radio platforms. Engineered to optimize multi-network operations, this high-performance switch box provides seamless audio routing and reliable dual-connection capabilities.

By allowing operators to toggle between discrete communication paths or combine them into a single audio stream, the PT-5764 ensures maximum situational awareness and uninterrupted command-and-control capabilities in high-stakes environments.

Advantages: Versatile Audio Routing & Tactical Control

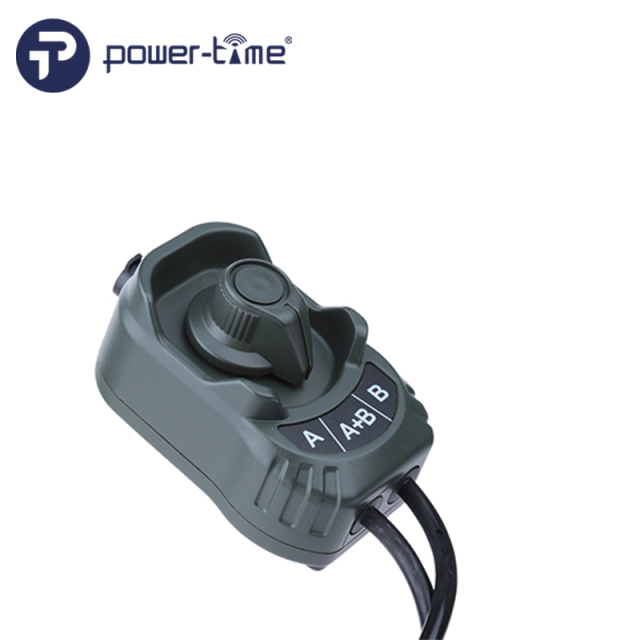

• 3-Position Functional Switching: Features an intuitive A / A+B / B selector switch, giving operators precise control over audio monitoring and selective transmission across connected lines.

• Dual Connector Interoperability: Designed to interface directly with both HR10 and CMA 5N14 connectors, ensuring broad hardware compatibility across Aselsan communication eco-systems.

• Simultaneous Dual-Connection: Capable of bridging two distinct connection interfaces at the same time, consolidating multiple radio feeds into a single, manageable interface.

• Tactile Channel Selection: Ergonomic switch design enables fast "blind-touch" operation, allowing users to shift between modes by feel alone, even while wearing heavy mission gloves.

Construction: Rugged, Secure, and Built for Aselsan Interfacing

• Aselsan-Dedicated Architecture: Tailored specifically to meet the electrical impedance and pinout specifications of Aselsan military and professional radios.

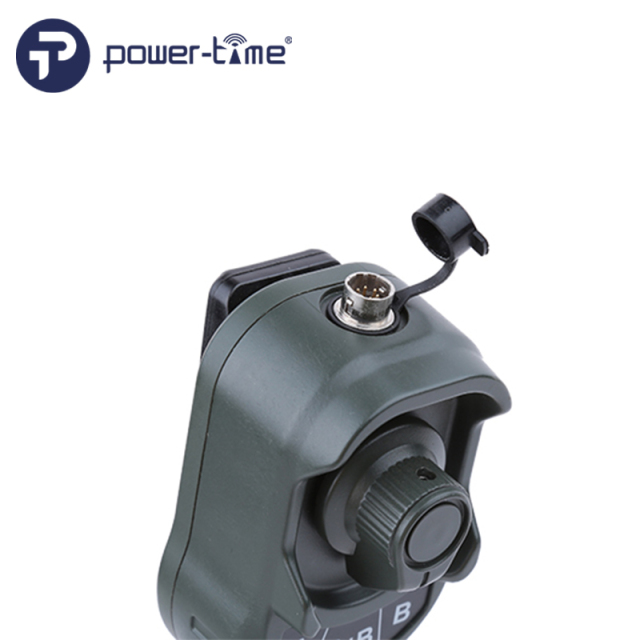

• Dual HR10 & CMA 5N14 Interface Ports: Precision-engineered connector ports ensure high-retention, secure locking to prevent accidental disconnects during movement.

• Reinforced Field Housing: Encased in a high-impact, weather-resistant shell built to withstand shock, vibration, and harsh environmental conditions.

• Heavy-Duty Cable Strain Relief: Reinforced entry points prevent internal wire fatigue, ensuring continuous operation under heavy pulling forces.

Use Scenarios: Mission-Critical Applications

• Defense & Military Operations: Enables soldiers using Aselsan tactical radios to switch rapidly between team internal, command, or joint agency channels.

• Public Safety & Law Enforcement: Allows tactical units to monitor and cross-patch discrete dispatch channels during joint inter-agency operations.

• Border Security & Mobile Patrols: Provides vehicle crews and foot patrols with a centralized PTT hub to handle complex multi-frequency radio networks without swapping headsets.

FAQ: Frequently Asked Questions

Q: How does the "A / A+B / B" switch work?

A: Position A routes audio and transmission exclusively to Channel A; Position B routes exclusively to Channel B; Position A+B allows simultaneous monitoring or combined operation across both connected audio lines.

Q: Can I connect both HR10 and CMA 5N14 cables at the same time?

A: Yes. The PT-5764 is engineered to support simultaneous dual connection, allowing both connector types to be plugged in concurrently for multi-line control.

Q: Is this PTT box compatible with non-Aselsan radios?

A: The PT-5764 is optimized specifically for Aselsan radio systems using HR10 and CMA 5N14 interface standards. For other radio brands, customized down-leads or alternative PTT models are recommended.

Q: Does the switch box require external battery power?

A: No. The PT-5764 is a passive switching unit that draws all necessary operational power directly from the connected Aselsan radio system.
