CMA 5N14 14pin plug

Name: CMA 5N14 14pin plug
Brand: Tactical communication audio and power solution manufacturer | Power-
SKU: TL24
Availability: InStock
Rating: 5 (1 reviews)

No.TL24

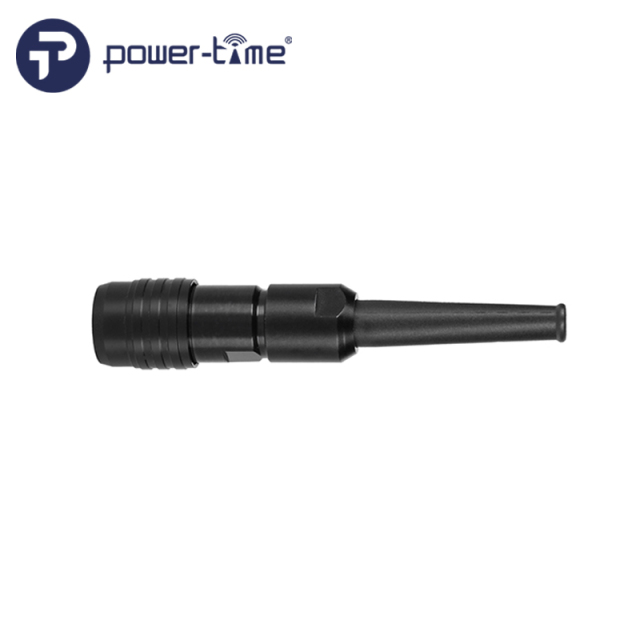

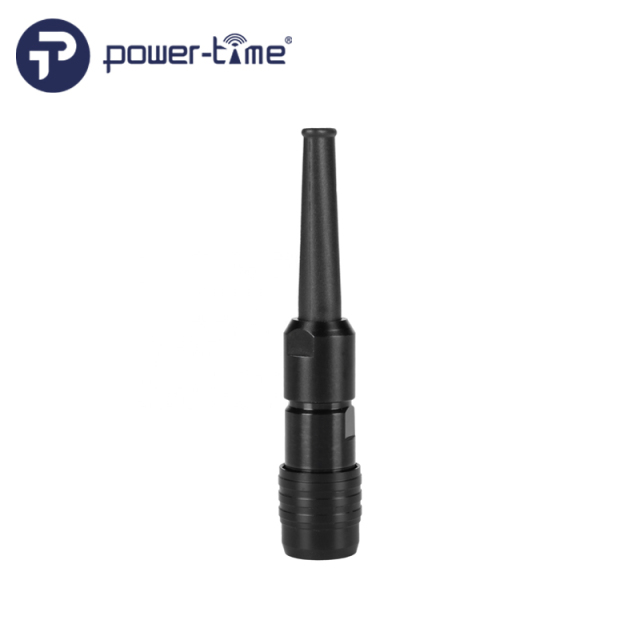

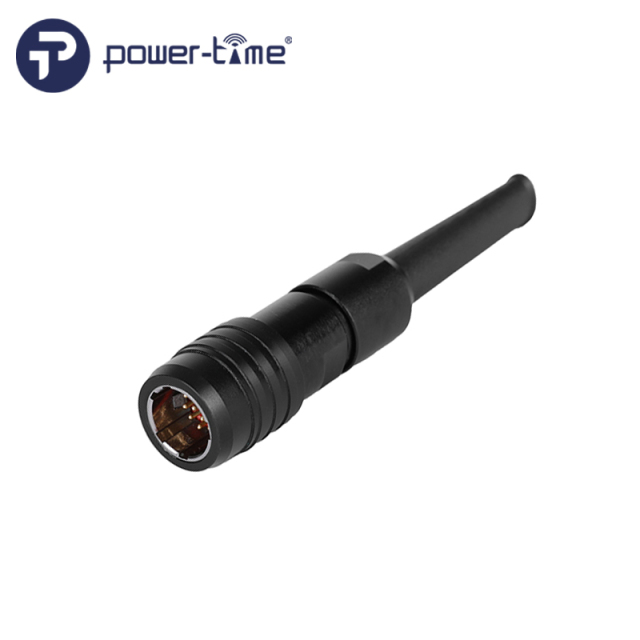

CMA 5N14 14pin plug mates with CMA 7N14 connector

Get The Latest Quote

SPECIFICATION

Power-Time 14 Pin CMA 5N14 plug

Shell Material	Dull black stainless steel
Work temperature	-55℃ to +125℃
Locking	Push-pull
Insulator	Thermoset
Watertightness	Under 4m of water /24 hours
Work voltage	-> 60 Vmax
Rating current	-> 1,5 Amax
Contact resistance	10 mOhms
Mechanical life	10000 cycles
Conductors	14 conductors
Insulation	<1000 MOhms
Crosstalk at 8 Khz	80dB
Dielectric rigidity	500 Veff at 50 Hz

20years factory manufacturer CMA 5N14 connector
It suit for DH-132 headset, D type PTT and ODU control box
