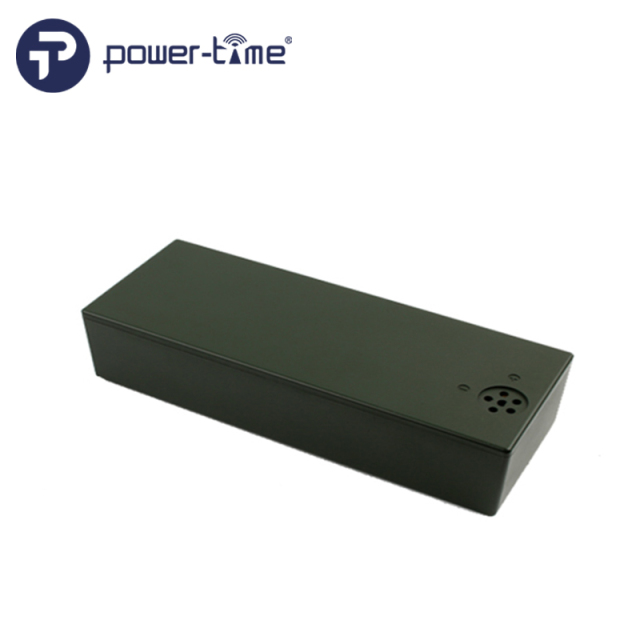

Power-Time Sealed Lead Acid Battery
This battery is designed for a wide variety of military radios. The battery is composed of a Rechargeable Sealed Lead-acid component that gives the battery more energy density and slow loss of charge.
Product Description
Functional Role and User Base of BB-LA6 Sealed Lead-Acid Battery
The BB-LA6 sealed lead-acid battery functions as a dependable energy source tailored specifically for professional military communications. It supports tactical radio models such as those requiring integration with military battery charger protocols. Targeted users include defense operators, communications engineers, and field maintenance personnel relying on stable power supplies for operational continuity. This unit’s compatibility with established military battery charger manufacturers’ equipment assures seamless deployment across diverse communication platforms within demanding mission environments.
Technical Composition and Measurable Specifications
This battery features sealed lead-acid chemistry, offering a nominal voltage of 12 Volts and a typical capacity of 4.6Ah. Its internal protection is reinforced by a positive temperature coefficient (PTC) fuse, ensuring safe operational conditions. Dimensions and weight have been optimized at 9.1 cm by 24 cm by 5.4 cm and 1.86 kg, respectively, to balance portability and endurance. The internal resistance maxes at 0.05 ohm when fully charged, facilitating efficient current delivery up to 30A instantaneous and 7A continuously at 20°C ambient temperature. The rugged, PC+ABS plastic housing meets strict industrial standards, and the battery is 100% final tested to guarantee reliability for harsh field applications.
Industrial Applications and Tactical Value of BB-LA6
The BB-LA6 is essential for powering tactical radios in military operations, including those deployed in communication arrays by defense sectors and specialized units. It acts not only as a primary power source but also as a backup energy reserve for mission-critical communications. Integration with established military battery charger infrastructures enhances system reliability and lifecycle management. Its slow self-discharge characteristic supports extended storage and rapid deployment cycles, essential for mission readiness in remote or austere environments such as those compatible with c-uas and other sensor-linked command units
Advantages:High-performance rechargeable Sealed Lead Acid BatteryDurable high-impact resistant plastic housing and connector enclosureHigh reliability due to all welded constructionContains internal PTC protection100% final testing
| For use in |
PRC-77,PRC-1077,PTC-1099radio sets |
| Replacement for |
BB-LA6,BB-586/U,BB-386/U,BA-386/U,BA5598 |
| Cell chemistry |
Sealed lead acid |
| Nominal voltage |
12 Volts |
| Typical capacity |
4.6Ah |
| Max.instantaneous output current |
30A at 20°C |
| Max.continuous output current |
7A at 20°C |
| Internal resistance |
0.05ohm max.(fully charged) |
| Percert of original capacity versus storage time |
90% after 3 months
80% after 6 months
60% after 12 months |
Protection
|
Internal re-settable fuse (PTC) |
| Nominal dimensions |
9.1 x 24x 5.4cm |
| Nominal weight |
1.86kg |
| Connector |
Floating type, 2 phosphor bronze pins fitted |
| Operating temperature |
-20℃ to +55℃ |
| Plastic material |
PC+ABS |
| Assembly construction |
Housings bonded by ultrasonic |
Tactical Radio Support in Defense CommunicationsIn military communications environments where reliability and fault tolerance are paramount, the BB-LA6 battery powers tactical systems including legacy radio sets used by specialized units. Its built-in electrical protection and resilience under temperature extremes ensure uninterrupted energy supply. The battery integrates within communication setups managed via military battery charger devices aligned with rigorous operational standards, supporting real-time command and control functions. Its endurance properties align with extended field missions and training exercises, supporting continuity in critical c-uas and sensor deployments.
Field Operations Backup Power for Emergency CommunicationsDesigned to address contingencies in remote or austere locations, the BB-LA6 serves as an emergency backup power source within mobile communication units and tactical command posts. Its slow self-discharge is advantageous for long-term storage without compromising readiness. The battery is optimized for compatibility with approved military battery charger manufacturers, enabling rapid recharge cycles essential during sustained operations. This ensures communication devices remain powered during extended deployments including law enforcement, eod robots support, and sensor network maintenance, thereby enhancing mission effectiveness and personnel safety.FAQ
What makes the BB-LA6 battery suitable for military radios like the PRC-77?Our BB-LA6 uses sealed lead-acid chemistry and a durable, welded plastic housing to ensure reliable performance in demanding conditions. It includes an internal PTC fuse for electrical protection and is fully tested, making it ideal for military radios such as PRC-77, PRC-1077, and PTC-1099.
Can you customize the BB-LA6 battery or provide specific configurations for bulk orders?We have strong R&D capabilities and a dedicated mold factory to support custom designs. For bulk orders, we offer tailored specifications and configurations to meet operational needs. Contact us directly for details on customization and to discuss your production plan.
How should I maintain the BB-LA6 battery to ensure long-term reliability?To maintain optimal performance, store the BB-LA6 battery within the recommended temperature range (-20°C to +55°C) and charge it regularly to prevent capacity loss. Our batteries feature slow self-discharge, retaining up to 90% capacity after three months, supporting extended storage life.
Do you provide compatible charging solutions for the BB-LA6 battery?Yes, we offer a range of battery charger manufacturers options, including military battery chargers designed for sealed lead-acid types like the BB-LA6. Our chargers ensure safe, efficient recharging to maintain battery lifespan and reliability for tactical use. Contact us to select the right charger.
