In military and tactical communications, the handset may be one of the simplest components of a radio system—but it is also one of the components operators interact with most frequently.
For organizations operating legacy radios, handheld radios, and manpack communication systems, replacing an aging or modified H-250/U handset can be surprisingly difficult. Compatibility, connector configuration, microphone performance, environmental protection, PTT reliability, and long-term availability all need to be considered.

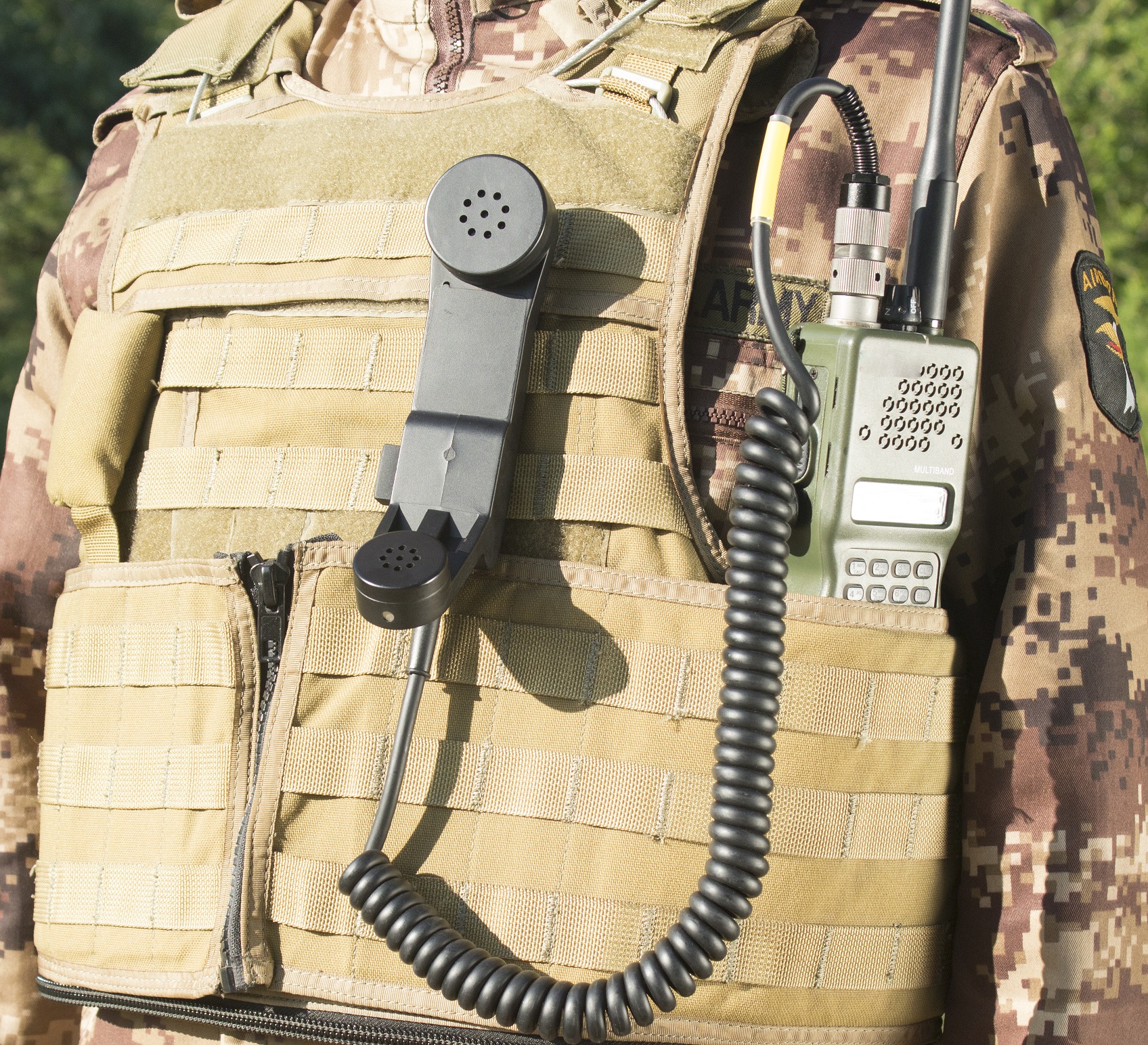

Shenzhen Power-Time Technology Co., Ltd. has developed the PTE-M004 H-250/U handset as a rugged alternative for these applications. Designed around the familiar H-250/U handset format, the PTE-M004 combines a noise-canceling dynamic microphone, dynamic speaker, mechanical PTT switch, rugged construction, and customizable connector configurations for tactical communication applications.
A Practical Alternative to Modified H-250/U Handsets
The H-250/U has been widely used in military and field communication systems for decades. However, many radios in service today use modified H-250/U configurations, with differences in connector type, wiring, microphone characteristics, or audio requirements.
This creates a common procurement problem:
Finding a replacement handset that physically resembles the H-250/U is easy. Finding one that can be configured for the actual radio system is much more important.
The PTE-M004 is designed with this requirement in mind.
Power-Time offers the handset with U-229, U-329 and other customized connector configurations, allowing the product to be adapted for different radio platforms and system requirements.
This makes the PTE-M004 particularly attractive to military radio integrators, distributors, maintenance organizations and users looking for an alternative to modified H-250/U handsets.
Designed for Tactical Communication
The PTE-M004 follows the familiar form factor and operating concept of the H-250/U family.
It incorporates:
Noise-canceling dynamic microphone
Dynamic speaker
Mechanical Push-to-Talk (PTT) switch
Retractable tactical cable
Rugged ABS construction
Water and dust protection
Multiple connector configurations
Custom connector and wiring options
Power-Time specifies a PTT service life of up to 2,000,000 cycles, making the handset suitable for applications where the PTT button may be operated repeatedly throughout a mission or working shift.
For tactical users, this is more than a specification on a datasheet. A PTT switch is operated every time an operator transmits. Long-term mechanical reliability can therefore have a direct effect on equipment availability and maintenance requirements.
IP68 Protection for Demanding Field Environments
Military communication equipment rarely operates in a clean indoor environment.
Handsets may be exposed to:
Rain
Dust
Sand
Mud
Vehicle vibration
Outdoor temperature changes
Rough handling
Extended field deployment
The PTE-M004 is offered with IP68 water and dust protection, providing a level of environmental protection suited to demanding tactical applications.
The handset is also designed according to MIL-STD-810, supporting its intended use in demanding military and field environments.
Clear Audio for Tactical Communications
A tactical handset needs to do two things reliably:
Transmit the operator's voice clearly and reproduce received audio clearly.
The PTE-M004 uses a dynamic microphone and moving-coil dynamic speaker. The standard product specifications list a microphone impedance of approximately 150 Ω and a speaker impedance of approximately 1,000 Ω.
The speaker is specified with:
Parameter PTE-M004
Speaker type Moving-coil dynamic
Speaker impedance 1,000 Ω ±15% @ 1 kHz
Speaker sensitivity 109 dB ±4 dB @ 1 kHz, 1 mW
Frequency response 300–4,000 Hz
Rated input power 0.5 W
Maximum input power 1 W
Microphone type Dynamic, noise-canceling
Microphone impedance 150 Ω ±10% @ 1 kHz
Microphone frequency response 300–3,000 Hz
These characteristics make the PTE-M004 suitable for voice communication applications where speech intelligibility and reliable audio reproduction are essential.
More Than a Standard H-250/U Replacement
One of the strongest advantages of the PTE-M004 is configuration flexibility.
Power-Time states that the handset can be supplied with different connectors and can be customized to match different radio systems. The product is listed with 5-pin U-229 and 6-pin U-329 configurations, while other connector options can also be customized.
This is particularly important when replacing a modified H-250/U.
A radio system may use an H-250/U-style handset but have a different:
Connector
Pin assignment
Microphone configuration
Speaker configuration
Cable length
Cable termination
PTT interface
Instead of modifying an off-the-shelf handset after delivery, system integrators can discuss the required configuration with Power-Time during the procurement process.
The result is a handset configured around the radio system—not simply a generic handset attached to it.
Compatible with H-250/U and H-189/GR Applications
The PTE-M004 is designed as an H-250/U-style tactical handset and is also specified as interchangeable with the H-189/GR handset in appropriate configurations.
It is intended for handheld and manpack radio applications, with Power-Time identifying applications including radios such as the AN/PRC-70 and AN/PRC-77.
For organizations maintaining fleets of legacy tactical radios, this provides another potential replacement option when original handset supply becomes difficult or costly.
A Replacement Solution for Legacy Radio Fleets
Many military organizations continue operating radio equipment that was introduced years—or even decades—ago.
The challenge is not necessarily the radio itself.
Often, the problem is finding dependable replacement accessories.
An original handset may become:
Difficult to source
Expensive
Subject to long lead times
Unavailable from the original supplier
Incompatible with a modified radio configuration
This is where the PTE-M004 can provide a practical alternative.
Instead of replacing an entire communication system simply because its handset is obsolete, procurement teams can evaluate a compatible replacement handset configured for the existing radio interface.
Why Choose the Power-Time PTE-M004?
1. H-250/U-style design
Designed around the familiar military handset configuration.
2. Rugged construction
Developed for tactical and field communication applications.
3. Long-life mechanical PTT
Rated for up to 2 million PTT cycles.
4. Environmental protection
Available with IP68 water and dust protection.
5. Noise-canceling microphone
Designed to improve voice communication in demanding environments.
6. Multiple connector options
U-229, U-329 and other configurations can be supplied.
7. Customization
Connector, cable and audio configurations can be adapted to customer requirements.
8. Suitable for legacy and modernized systems
An option for organizations seeking alternatives to original or modified H-250/U handsets.
PTE-M004 vs. a Generic H-250/U Replacement
Not every H-250/U-style handset is necessarily suitable for every radio.
The external appearance may be similar, while the internal microphone, speaker, PTT circuit and connector wiring can be completely different.
For this reason, radio compatibility should always be verified before ordering.
Power-Time's customization capability allows customers to specify the required connector and interface configuration rather than relying solely on the appearance of the original handset.
For military radio distributors, system integrators and maintenance organizations, this can be especially valuable when dealing with modified H-250/U configurations or legacy radio fleets.
A Cost-Effective Path for Tactical Radio Sustainment
Replacing an established military communication accessory does not always require replacing the entire radio.
The PTE-M004 H-250/U handset provides a practical option for organizations seeking a rugged replacement or alternative handset for tactical handheld and manpack radio systems.
With its H-250/U-style design, noise-canceling dynamic microphone, dynamic speaker, long-life mechanical PTT, environmental protection and customizable connector configurations, the PTE-M004 is positioned as one of the strong alternatives to modified H-250/U handsets for military communication applications.
For customers who need a replacement handset for a specific radio model, Power-Time can evaluate the required connector, pinout, microphone, speaker and PTT configuration before production.
